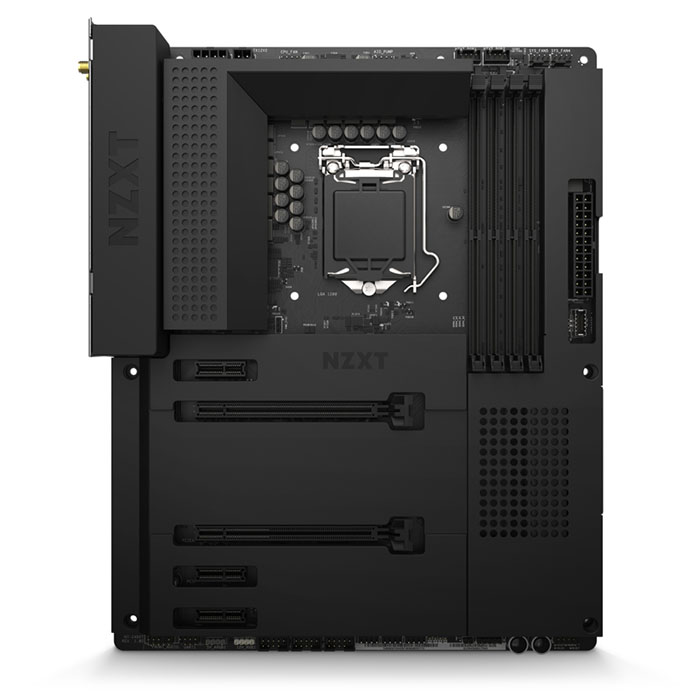

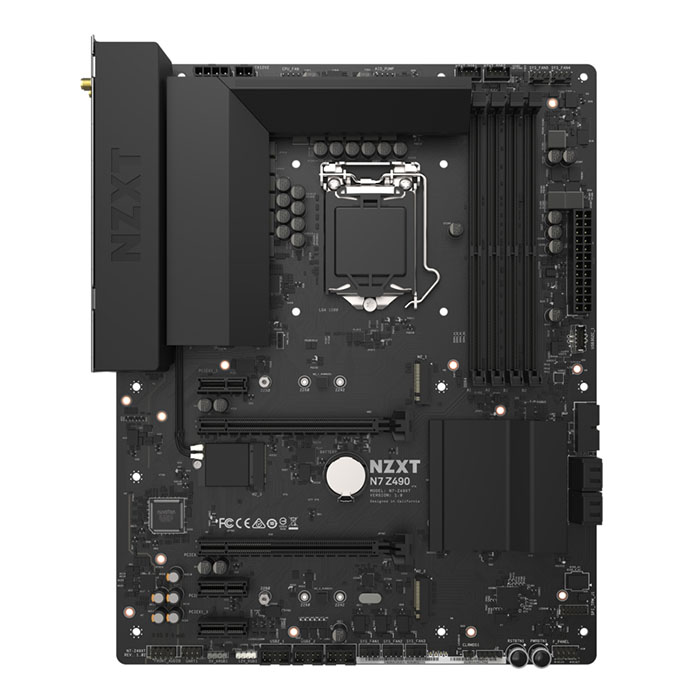

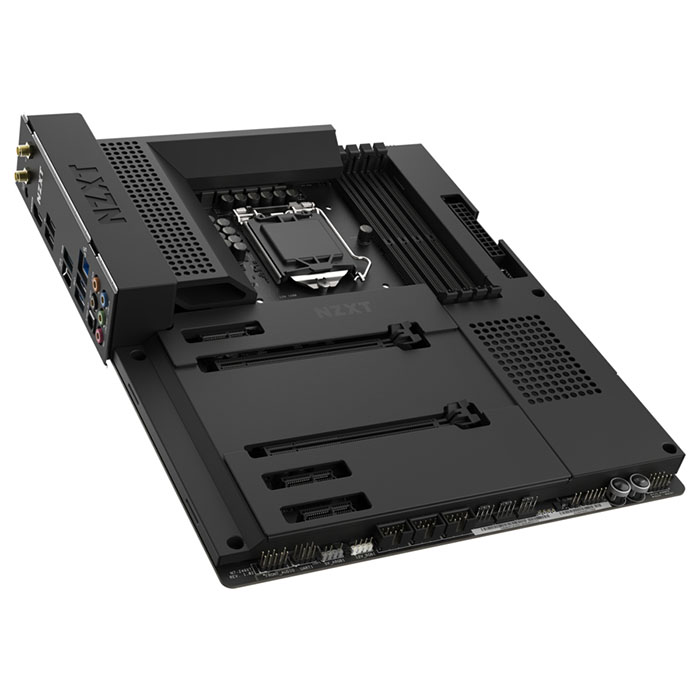

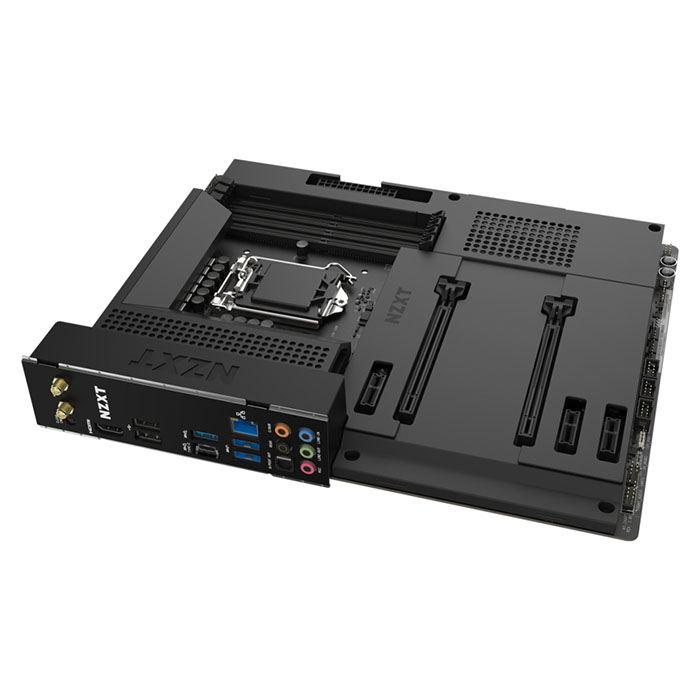

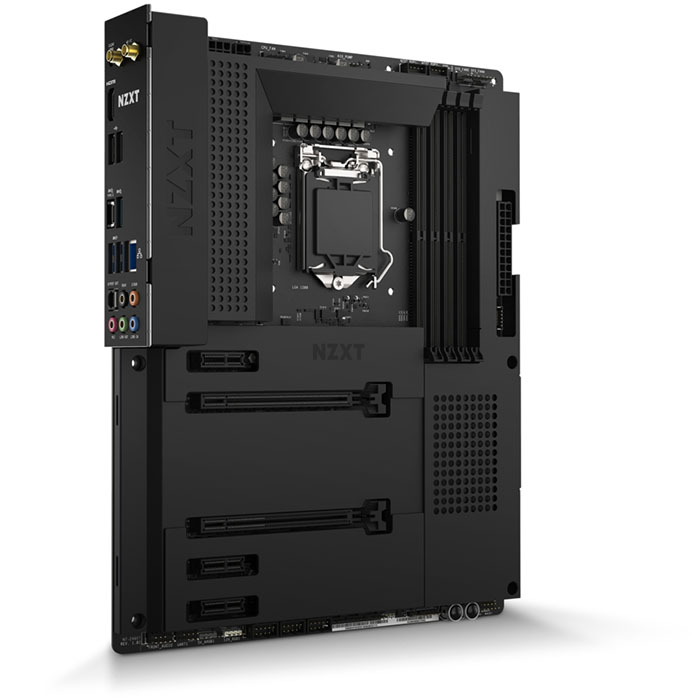

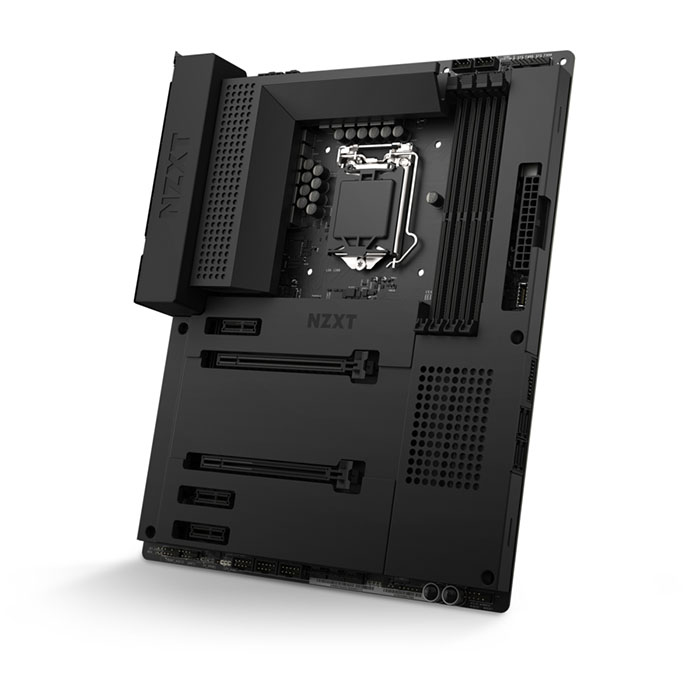

NZXT N7 Z490 LGA 1200 Intel Z490 DDR4 ATX Motherboard (N7-Z49XT-B1)

NZXT
  • LGA 1200
  • Intel Z490
  • ATX
  • DDR4

SKU: B005-0939
Condition: New Sealed
Model Number: N7-Z49XT-B1 EAN/UPC: 5060301696055

DELIVERY



Free shipping on all orders. 1 to 4 business days delivery with 1 business day dispatch, Monday to Friday…Read More.

RETURNS



Free returns on all orders. 30 day return policy. Free returns on all faulty items within the manufacturer warranty period…Read More.

Compare
Availability:

Out of stock

US$ 324.99 inc. VAT

Out of stock

Add to wishlist
Compare
SKU: B005-0939 Category:
Internal I/O
Number of M.2 (M) slots 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
12V power connector Yes
Supported storage drive interfaces M.2,SATA III
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
S/PDIF out connector Yes
Number of SATA III connectors 4
Number of EATX power connectors 1
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel Z490
Supported processor sockets LGA 1200 (Socket H5)
Parallel processing technology support 2-Way CrossFireX
On-board graphics adapter Yes
HDMI version 1.4b
Cooling type Active
Motherboard form factor ATX
Component for PC
Maximum internal memory supported by processor 128 GB
Audio
Audio output channels 8 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 10 x64
Motherboard chipset family Intel
Motherboard chipset Intel Z490
RAID levels 0,1,5,10
Supported processor sockets LGA 1200 (Socket H5)
Cooling type Active
Certification FCC, CE, WHQL, ErP/EuP Ready
Audio output channels 8 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer Intel
Maximum internal memory supported by processor 128 GB
Compatible processor series Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Supported processor sockets LGA 1200 (Socket H5)
Maximum number of SMP processors 1
Processor socket LGA 1200
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Non-ECC Yes
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4266 MHz
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Maximum internal memory 128 GB
Unbuffered memory Yes
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
RAID levels 0,1,5,10
Number of storage drives supported 2
Graphics
Maximum graphics adapter memory 1024 MB
Parallel processing technology support 2-Way CrossFireX
On-board graphics adapter Yes
Maximum resolution 4096 x 2160 pixels
Graphics adapter family Intel
Graphics adapter HD Graphics
Discrete graphics support Yes

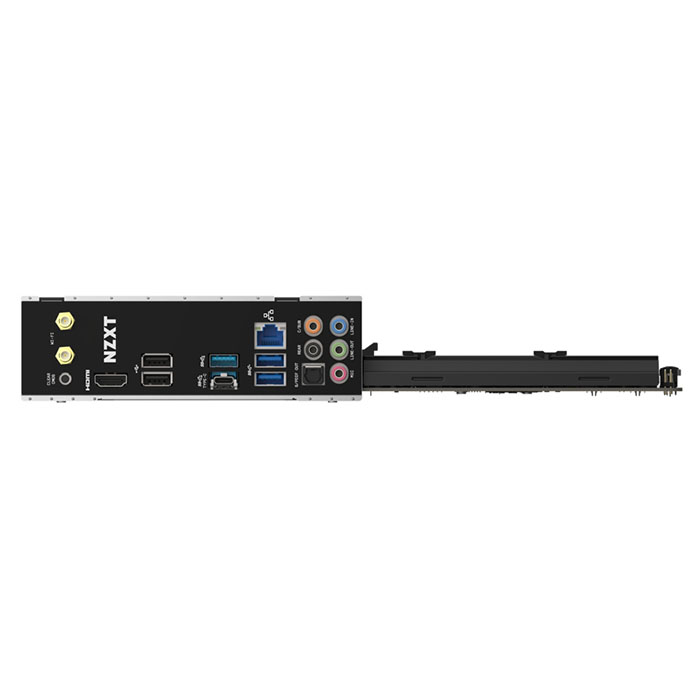

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 2.0 ports quantity 2
WiFi-AP antenna jack 1
S/PDIF out port Yes
Headphone outputs 1
HDMI version 1.4b
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
LAN controller Dragon RTL8125BG
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.1
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
WLAN controller model Intel Wi-Fi 6 AX200
Features
Power source type ATX
Windows operating systems supported Windows 10 x64
Motherboard chipset family Intel
Motherboard chipset Intel Z490
Supported processor sockets LGA 1200 (Socket H5)
Cooling type Active
Certification FCC, CE, WHQL, ErP/EuP Ready
Audio output channels 8 channels
Motherboard form factor ATX
Component for PC
Audio chip Realtek ALC1220
Expansion slots
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 3
PCI Express x16 (Gen 3.x) slots 2
BIOS
BIOS type UEFI AMI
Clear CMOS button Yes
Power
Power source type ATX
Video
Maximum graphics adapter memory 1024 MB
Maximum resolution 4096 x 2160 pixels
Graphics adapter family Intel
Graphics adapter HD Graphics
Discrete graphics support Yes
Certificates
Certification FCC, CE, WHQL, ErP/EuP Ready
Software
Windows operating systems supported Windows 10 x64
