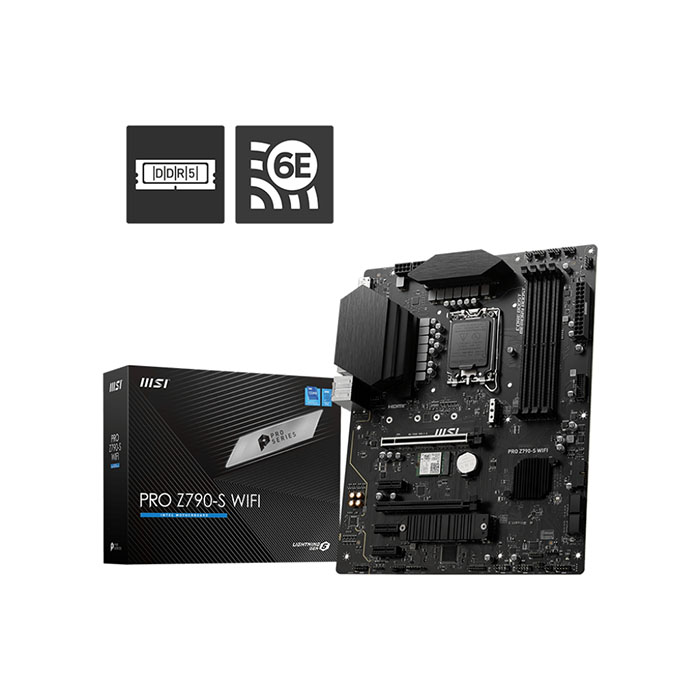

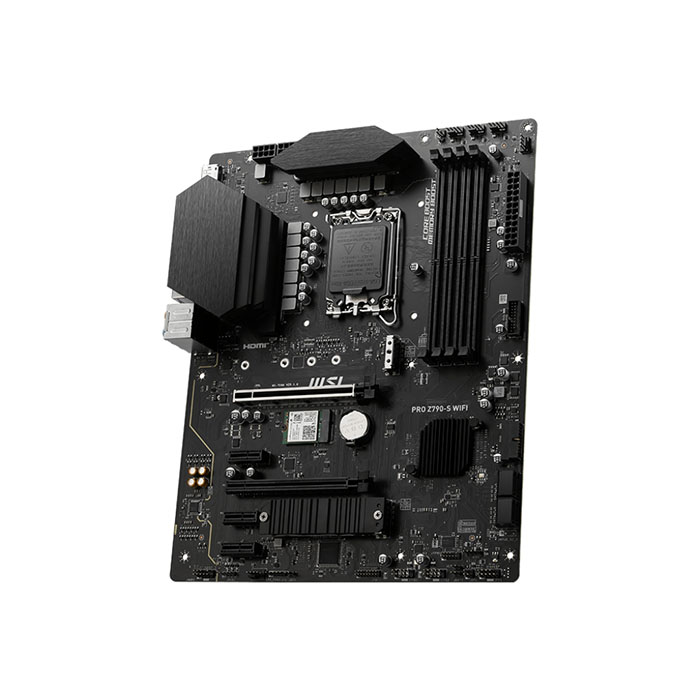

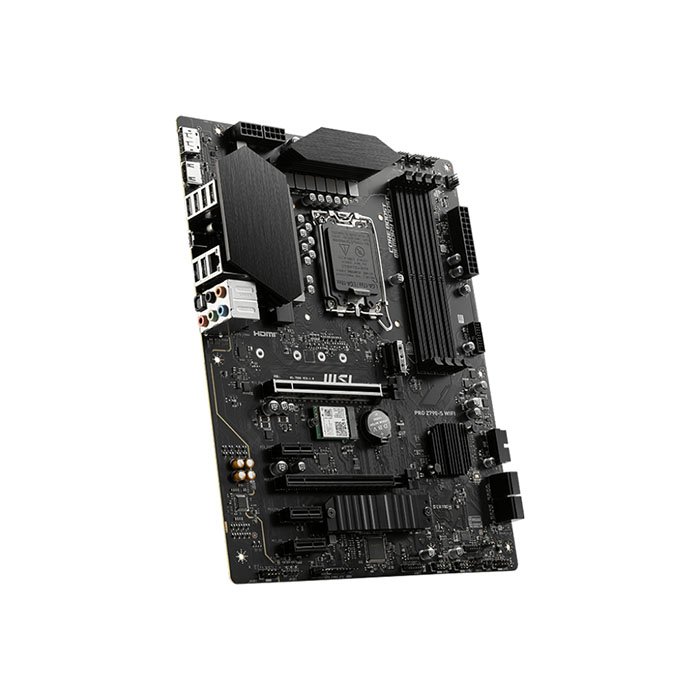

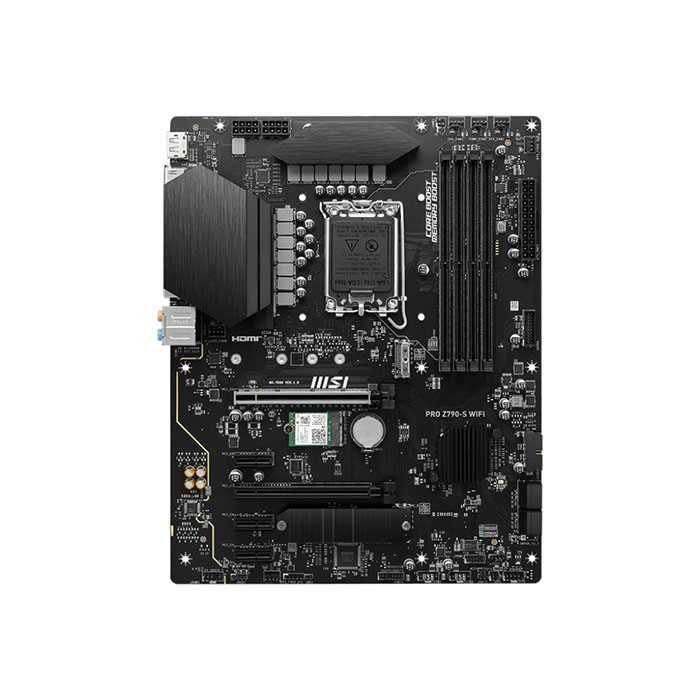

MSI PRO Z790-S WIFI LGA 1700 Intel Z790 DDR5 ATX Motherboard (PRO Z790-S WIFI)

MSI
  • LGA 1700
  • Intel Z790
  • ATX
  • DDR5

SKU: B005-1423
Condition: New Sealed
Model Number: PRO Z790-S WIFI EAN/UPC: 4711377119603

DELIVERY



Free shipping on all orders. 1 to 4 business days delivery with 1 business day dispatch, Monday to Friday…Read More.

RETURNS



Free returns on all orders. 30 day return policy. Free returns on all faulty items within the manufacturer warranty period…Read More.

Compare
Availability:

Out of stock

US$ 255.99 inc. VAT

Out of stock

Add to wishlist
Compare
SKU: B005-1423 Category:
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel? Celeron?, Intel? Pentium? Gold
Supported processor sockets LGA 1700
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 192 GB
Non-ECC Yes
Supported memory clock speeds 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max) 6600 MHz
Storage controllers
Supported storage drive interfaces M.2, PCI Express
Supported storage drive types HDD & SSD
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 6
Front panel audio connector Yes
Front panel connector Yes
TPM connector Yes
RGB LED pin header Yes

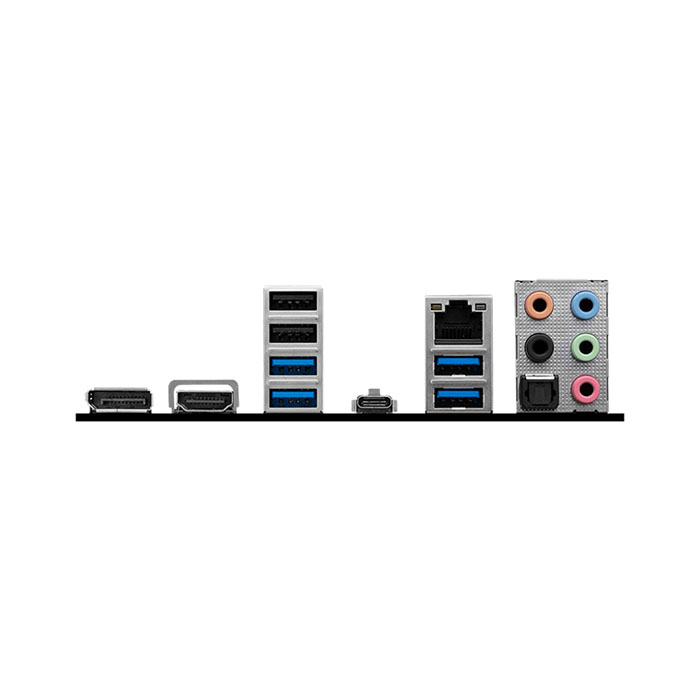

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 1.4
DisplayPorts quantity 1
DisplayPort version 1.4
S/PDIF out port Yes
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth Yes
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z790
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
Number of M.2 (M) slots 4
Weight & dimensions
Width 243.8 mm
Depth 304.8 mm
Packaging content
Cables included SATA
