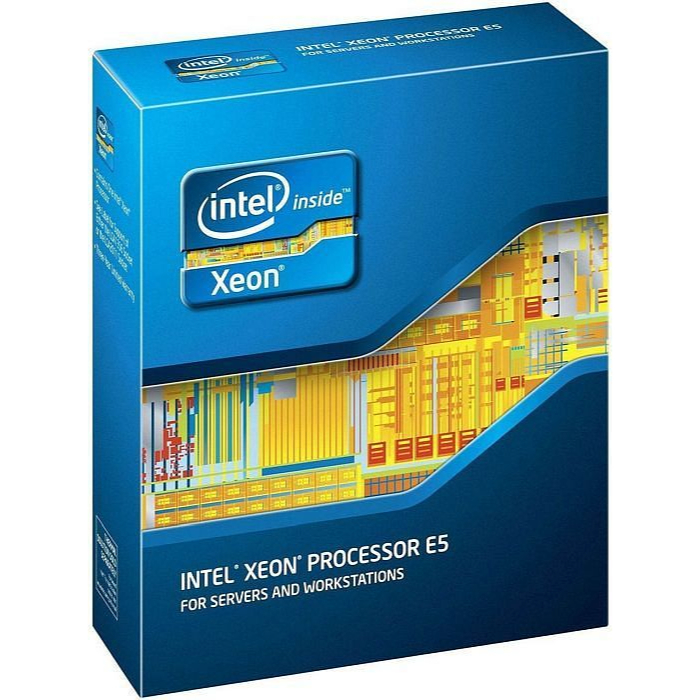

Intel Xeon E5-1660V2 Ivy Bridge EP 3.7 GHz LGA 2011 6-Core Processor (BX80635E51660V2)

Intel
  • Intel Xeon E5 Family
  • E5-1660V2
  • LGA 2011
  • 3.7 GHz

SKU: B009-0136
Condition: New Sealed
Model Number: BX80635E51660V2 EAN/UPC: 5032037054829

DELIVERY



Free shipping on all orders. 1 to 4 business days delivery with 1 business day dispatch, Monday to Friday…Read More.

RETURNS



Free returns on all orders. 30 day return policy. Free returns on all faulty items within the manufacturer warranty period…Read More.

Compare
Availability:

Out of stock

$ 1,358.99 inc. Tax

Out of stock

Add to wishlist
Compare
SKU: B009-0136 Category:
Processor
Processor codename Ivy Bridge EP
Processor cache 15 MB
Processor ARK ID 75781
Processor frequency 3.7 GHz
Processor model E5-1660V2
Processor threads 12
Processor operating modes 64-bit
Processor boost frequency 4 GHz
Bus type QPI
Component for Server/Workstation
Processor lithography 22 nm
Processor family Intel Xeon E5 Family
Processor cores 6
Box Yes
Processor socket LGA 2011 (Socket R)
Processor code SR0KN
Processor series Intel Xeon E5-1600 v2
Processor cache type Smart Cache
Memory
Maximum internal memory supported by processor 256 GB
Memory types supported by processor DDR3-SDRAM
Memory clock speeds supported by processor 800,1066,1333,1600,1866 MHz
Memory bandwidth supported by processor (max) 59.7 GB/s
Memory channels supported by processor Quad
ECC supported by processor Yes
Graphics
On-board graphics adapter No
Power
Thermal Design Power (TDP) 130 W
VID Voltage Range 0.65 – 1.30 V
Technical details
Cache memory 15 MB
Thermal Monitoring Technologies Yes
Intel vPro Technology Yes
Intel Turbo Boost Technology Yes
Intel Trusted Execution Technology Yes
Intel Smart Cache Yes
Intel Identity Protection Technology (Intel IPT) No
Intel Hyper Threading Technology (Intel HT Technology) Yes
Intel Flex Memory Access No
Intel AES New Instructions (Intel AES-NI) Yes
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
Intel Virtualization Technology (Intel VT) VT-d,VT-x
PCI Express slots version 3.0
PCI Express configurations x4, x8, x16
Supported instruction sets AVX
Scalability 1S
On-board memory controller Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Enhanced Halt State Yes
Intel Demand Based Switching Yes
Embedded options available No
CPU configuration (max) 1
Processor code SR0KN
Product type 4
Processor cache 15360 KB
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Thermal Design Power (TDP) 130 W
Status Launched
Product name Intel Xeon E5-1660 v2 (15M Cache, 3.70 GHz)
Processor series Intel Xeon E5-1600 v2
Processor core voltage 0.651.30
Physical Address Extension (PAE) 46 bit
Market segment SRV
Launch date 2013-09-10T00:00:00
Intel Virtualization Technology (VT-x) Yes
Intel Secure Key Technology version 1.00
Intel Identity Protection Technology version 0.00
Processor cache type Smart Cache
Bus type units GT/s
Born on date Q3’13
Maximum memory 256 GB
Intel TSX-NI version 0.00
Processor brand name Intel Xeon v2
Last change 63903513
Product family Intel Xeon Processor E5 v2 Family
Features
Maximum number of PCI Express lanes 40
Thermal Design Power (TDP) 130 W
Processor package size 52.5 mm
Processor ARK ID 75781
Thermal Monitoring Technologies Yes
Idle States Yes
Execute Disable Bit Yes
PCI Express slots version 3.0
PCI Express configurations x4, x8, x16
Supported instruction sets AVX
Scalability 1S
Embedded options available No
CPU configuration (max) 1
Processor code SR0KN
Physical Address Extension (PAE) 46 bit
Market segment SRV
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Conflict Free processor No
Intel vPro Technology Yes
Intel Turbo Boost Technology Yes
Intel Trusted Execution Technology Yes
Intel Smart Cache Yes
Intel Identity Protection Technology (Intel IPT) No
Intel Hyper Threading Technology (Intel HT Technology) Yes
Intel Flex Memory Access No
Intel AES New Instructions (Intel AES-NI) Yes
Enhanced Intel SpeedStep Technology Yes
Intel Virtualization Technology (Intel VT) VT-d,VT-x
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Enhanced Halt State Yes
Intel Demand Based Switching Yes
Intel Virtualization Technology (VT-x) Yes
Intel Secure Key Technology version 1.00
Intel Identity Protection Technology version 0.00
Intel TSX-NI version 0.00
Operational conditions
Tcase 70 °C
Weight & dimensions
Processor package size 52.5 mm
Other features
Cache memory 15 MB
Intel Virtualization Technology (Intel VT) VT-d,VT-x
On-board memory controller Yes
Maximum internal memory 262144 MB
CPU configuration (max) 1
Processor code SR0KN
