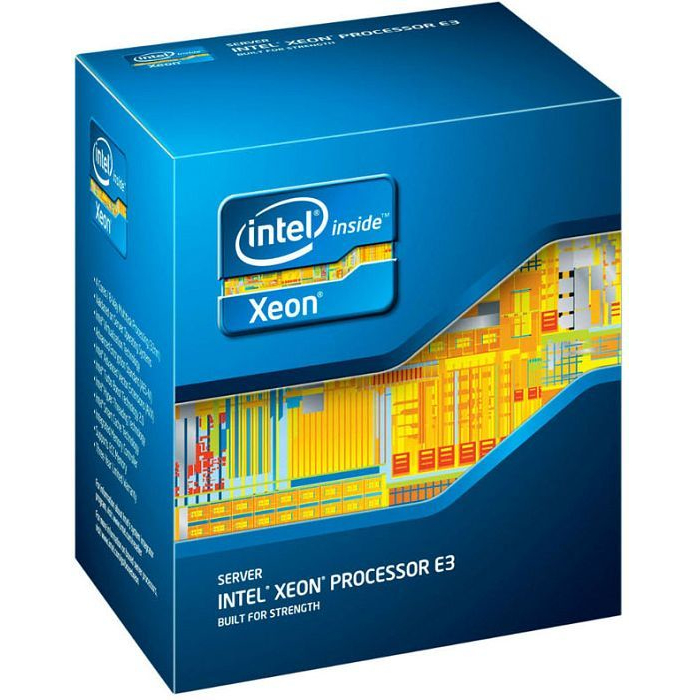

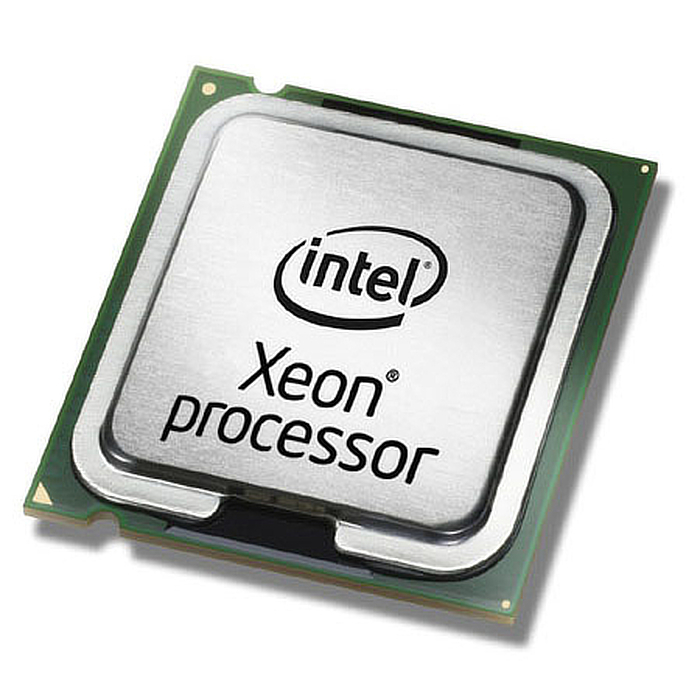

Intel Xeon E3 v6 E3-1225 v6 Kaby Lake 3.3 GHz LGA 1151 4-Core Processor (BX80677E31225V6)

Intel
  • Intel Xeon E3 v6
  • E3-1225 v6
  • LGA 1151
  • 3.3 GHz

SKU: B009-0396
Condition: New Sealed
Model Number: BX80677E31225V6 EAN/UPC: 5032037094481

DELIVERY



Free shipping on all orders. 1 to 4 business days delivery with 1 business day dispatch, Monday to Friday…Read More.

RETURNS



Free returns on all orders. 30 day return policy. Free returns on all faulty items within the manufacturer warranty period…Read More.

Compare
Availability:

Out of stock

US$ 313.99 inc. Tax

Out of stock

Add to wishlist
Compare
SKU: B009-0396 Category:
Processor
Processor manufacturer Intel
Cooler included No
Processor codename Kaby Lake
Memory bandwidth supported by processor (max) 37.5 GB/s
Processor cache 8 MB
Processor ARK ID 97476
Processor frequency 3.3 GHz
Processor model E3-1225 v6
Processor threads 4
System bus rate 8 GT/s
Processor operating modes 64-bit
Processor boost frequency 3.7 GHz
Bus type DMI3
Component for Server/Workstation
Processor lithography 14 nm
Processor family Intel Xeon E3 v6
Processor cores 4
Box Yes
Processor socket LGA 1151 (Socket H4)
Processor cache type Smart Cache
Memory
Maximum internal memory supported by processor 64 GB
Memory types supported by processor DDR3L,DDR4-SDRAM
Memory clock speeds supported by processor 1866,2400 MHz
Memory bandwidth supported by processor (max) 37.5 GB/s
Memory channels Dual-channel
ECC Yes
Graphics
On-board graphics adapter outputs supported DVI,DisplayPort,Embedded DisplayPort (eDP),HDMI
On-board graphics adapter maximum resolution (DisplayPort) 4096 x 2304 pixels
On-board graphics adapter ID 0x191D
On-board graphics adapter 4K support Yes
On-board graphics adapter maximum resolution (eDP – Integrated Flat Panel) 4096 x 2304 pixels
On-board graphics adapter refresh rate at maximum resolution (HDMI) 24 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) 60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP – Integrated Flat Panel) 60 Hz
Maximum on-board graphics adapter memory 1.7 GB
Number of displays supported (on-board graphics) 3
On-board graphics adapter maximum resolution (HDMI) 4096 x 2160 pixels
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.4
On-board graphics adapter model Intel HD Graphics P630
On-board graphics adapter Yes
On-board graphics adapter dynamic frequency (max) 1150 MHz
On-board graphics adapter base frequency 350 MHz
Maximum graphics adapter memory 64 GB
Power
Thermal Design Power (TDP) 73 W
VID Voltage Range 0.55 – 1.52 V
Technical details
Intel TSX-NI Yes
Intel Secure Key Yes
Thermal Monitoring Technologies Yes
Intel Turbo Boost Technology 2.0
Intel Trusted Execution Technology Yes
Intel Quick Sync Video Technology Yes
Intel InTru 3D Technology Yes
Intel Hyper Threading Technology (Intel HT Technology) No
Intel Clear Video HD Technology (Intel CVT HD) Yes
Intel AES New Instructions (Intel AES-NI) Yes
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
PCI Express slots version 3.0
PCI Express configurations 1×16,1×8+2×4,2×8
Supported instruction sets AVX 2.0,SSE4.1,SSE4.2
Scalability 1S
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Enhanced Halt State Yes
Embedded options available No
CPU configuration (max) 1
Graphics output eDP/DP/HDMI/DVI
Product type Processor
Processor cache 8192 KB
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Video decoding Yes
Thermal Design Power (TDP) 73 W
Intel Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Yes
Status Launched
Maximum resolution & refresh rate (VGA) N/A
Maximum resolution & refresh rate (Integrated Flat Panel) 4096×2304@60Hz
Maximum resolution & refresh rate (HDMI) 4096×2160@24Hz
Maximum resolution & refresh rate (DisplayPort) 4096×2304@60Hz
Market segment SRV
Launch date Q1’17
Intel Virtualization Technology (VT-x) Yes
Intel Secure Key Technology version 1.00
Processor cache type Smart Cache
Bus type units GT/s
Bus bandwidth 8
Maximum memory 64 GB
Intel TSX-NI version 1.00
Processor brand name Intel Xeon
Last change 63903513
Product family Intel Xeon Processors
Maximum graphics adapter memory 64 GB
Processor ID 0x591D
Bus speed 8 GT/s
Features
On-board graphics adapter ID 0x191D
Maximum number of PCI Express lanes 16
Thermal Design Power (TDP) 73 W
Processor package size 37.5 x 37.5 mm
Processor ARK ID 97476
Thermal Monitoring Technologies Yes
Idle States Yes
Execute Disable Bit Yes
PCI Express slots version 3.0
PCI Express configurations 1×16,1×8+2×4,2×8
Supported instruction sets AVX 2.0,SSE4.1,SSE4.2
Scalability 1S
Embedded options available No
CPU configuration (max) 1
Market segment SRV
Harmonized System (HS) code 8542310001
PCI Express CEM revision 3.0
Processor special features
Intel Clear Video Technology Yes
Intel Software Guard Extensions (Intel SGX) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Conflict-Free processor Yes
Intel Memory Protection Extensions (Intel MPX) Yes
Intel Optane Memory Ready Yes
Intel OS Guard Yes
Intel TSX-NI Yes
Intel Secure Key Yes
Intel Turbo Boost Technology 2.0
Intel Trusted Execution Technology Yes
Intel Quick Sync Video Technology Yes
Intel InTru 3D Technology Yes
Intel Hyper Threading Technology (Intel HT Technology) No
Intel Clear Video HD Technology (Intel CVT HD) Yes
Intel AES New Instructions (Intel AES-NI) Yes
Enhanced Intel SpeedStep Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Enhanced Halt State Yes
Intel Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Yes
Intel Virtualization Technology (VT-x) Yes
Intel Secure Key Technology version 1.00
Intel TSX-NI version 1.00
Intel Boot Guard Yes
Intel vPro Platform Eligibility Yes
Weight & dimensions
Processor package size 37.5 x 37.5 mm
Package width 70 mm
Package depth 116 mm
Package height 101 mm
Other features
Video decoding Yes
Maximum internal memory 65536 MB
CPU configuration (max) 1
Graphics output eDP/DP/HDMI/DVI
