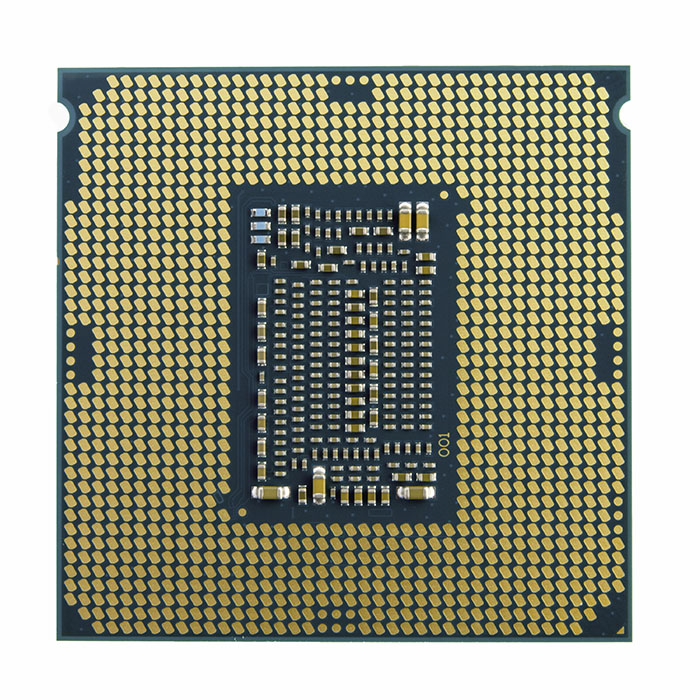

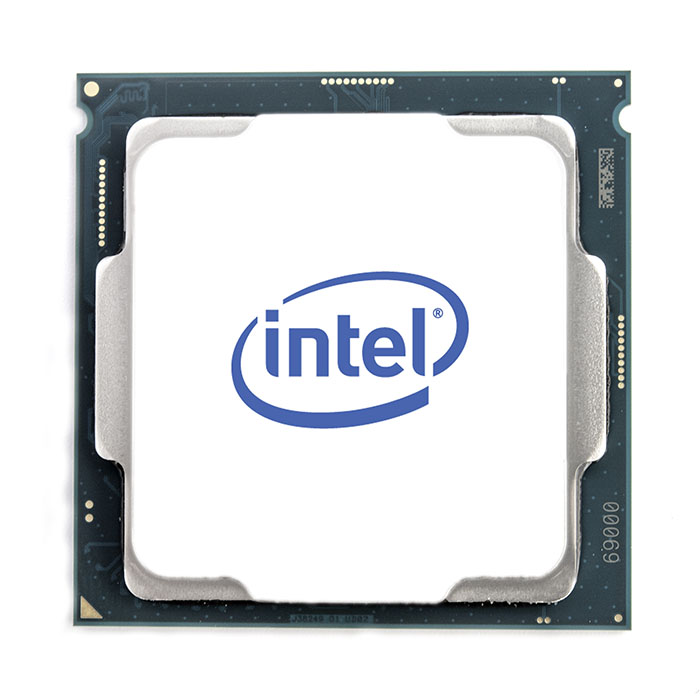

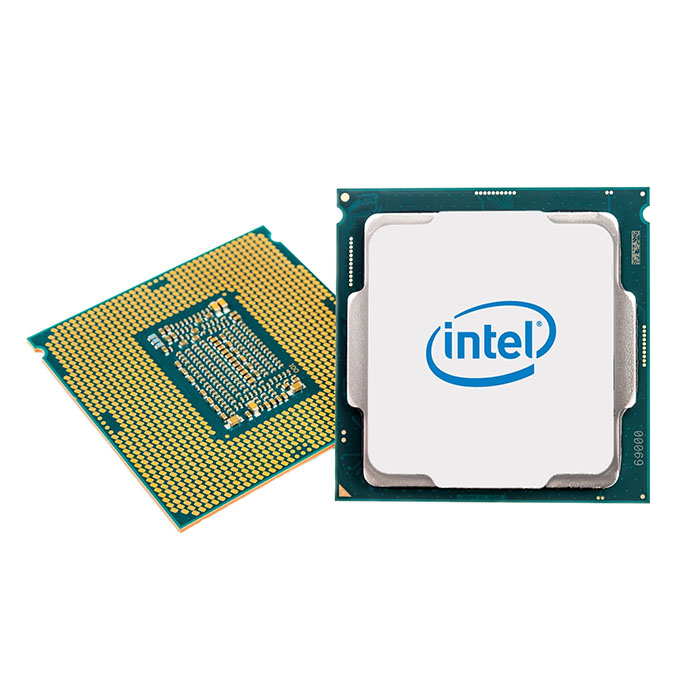

Intel Xeon E E-2226GE Coffee Lake 3.4 GHz LGA 1151 6-Core Processor (CM8068404405020)

Intel
  • Intel Xeon E
  • E-2226GE
  • LGA 1151
  • 3.4 GHz

SKU: B009-0644
Condition: New Sealed
Model Number: CM8068404405020 EAN/UPC: 0

DELIVERY



Free shipping on all orders. 1 to 4 business days delivery with 1 business day dispatch, Monday to Friday…Read More.

RETURNS



Free returns on all orders. 30 day return policy. Free returns on all faulty items within the manufacturer warranty period…Read More.

Compare
Availability:

Out of stock

US$ 385.99 inc. Tax

Out of stock

Add to wishlist
Compare
SKU: B009-0644 Category:
Processor
Processor base frequency 3.4 GHz
Processor manufacturer Intel
Cooler included No
Processor codename Coffee Lake
Memory bandwidth supported by processor (max) 41.6 GB/s
Thermal Design Power (TDP) 80 W
Processor cache 12 MB
Processor ARK ID 195325
Processor model E-2226GE
Processor threads 6
System bus rate 8 GT/s
Processor operating modes 64-bit
Processor boost frequency 4.6 GHz
Component for Notebook
Processor lithography 14 nm
Processor family Intel Xeon E
Processor cores 6
Box No
Processor socket LGA 1151 (Socket H4)
Processor cache type Smart Cache
Memory
Maximum internal memory supported by processor 128 GB
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2666 MHz
Memory bandwidth supported by processor (max) 41.6 GB/s
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
ECC Yes
Graphics
Discrete graphics adapter No
On-board graphics adapter outputs supported Embedded DisplayPort (eDP),DisplayPort,HDMI,DVI
On-board graphics adapter maximum resolution (DisplayPort) 4096 x 2304 pixels
On-board graphics adapter ID 0x3E9A
On-board graphics adapter 4K support Yes
On-board graphics adapter maximum resolution (eDP – Integrated Flat Panel) 4096 x 2304 pixels
On-board graphics adapter refresh rate at maximum resolution (HDMI) 30 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) 60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP – Integrated Flat Panel) 60 Hz
Maximum on-board graphics adapter memory 128 GB
Number of displays supported (on-board graphics) 3
On-board graphics adapter maximum resolution (HDMI) 4096 x 2160 pixels
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.5
On-board graphics adapter model Intel UHD Graphics 630
On-board graphics adapter Yes
On-board graphics adapter dynamic frequency (max) 1200 MHz
On-board graphics adapter base frequency 350 MHz
Discrete graphics adapter model Not available
Maximum graphics adapter memory 128 GB
Power
Thermal Design Power (TDP) 80 W
Technical details
Intel TSX-NI Yes
Intel Secure Key Yes
Thermal Monitoring Technologies Yes
Intel Turbo Boost Technology 2.0
Intel Trusted Execution Technology Yes
Intel Quick Sync Video Technology Yes
Intel InTru 3D Technology Yes
Intel Hyper Threading Technology (Intel HT Technology) No
Intel Clear Video HD Technology (Intel CVT HD) Yes
Intel AES New Instructions (Intel AES-NI) Yes
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
PCI Express slots version 3.0
PCI Express configurations 1×16,2×8,1×8+2×4
Supported instruction sets SSE4.1,SSE4.2,AVX 2.0
Scalability 1S
Intel VT-x with Extended Page Tables (EPT) Yes
Embedded options available Yes
CPU configuration (max) 1
Graphics output eDP/DP/HDMI/DVI
Product type Processor
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Thermal Design Power (TDP) 80 W
Supported memory types DDR4-SDRAM
Status Launched
Maximum resolution & refresh rate (DisplayPort) 4096×2304@60Hz
Market segment Embedded
Launch date Q2’19
Intel Virtualization Technology (VT-x) Yes
Processor cache type Smart Cache
Maximum memory 128 GB
Maximum graphics adapter memory 128 GB
Processor ID 0x3E9A
Bus speed 8 GT/s
Features
On-board graphics adapter ID 0x3E9A
Maximum number of PCI Express lanes 16
Thermal Design Power (TDP) 80 W
Processor package size 37.5 x 37.5 mm
Processor ARK ID 195325
Thermal Monitoring Technologies Yes
Idle States Yes
Execute Disable Bit Yes
PCI Express slots version 3.0
PCI Express configurations 1×16,2×8,1×8+2×4
Supported instruction sets SSE4.1,SSE4.2,AVX 2.0
Scalability 1S
Embedded options available Yes
CPU configuration (max) 1
Market segment Embedded
Harmonized System (HS) code 8542310001
Export Control Classification Number (ECCN) 5A992C
Commodity Classification Automated Tracking System (CCATS) G077159
PCI Express CEM revision 3.0
Processor special features
Intel Clear Video Technology Yes
Intel Software Guard Extensions (Intel SGX) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel 64 Yes
Intel Memory Protection Extensions (Intel MPX) Yes
Intel Optane Memory Ready Yes
Intel OS Guard Yes
Intel TSX-NI Yes
Intel Secure Key Yes
Intel Turbo Boost Technology 2.0
Intel Trusted Execution Technology Yes
Intel Quick Sync Video Technology Yes
Intel InTru 3D Technology Yes
Intel Hyper Threading Technology (Intel HT Technology) No
Intel Clear Video HD Technology (Intel CVT HD) Yes
Intel AES New Instructions (Intel AES-NI) Yes
Enhanced Intel SpeedStep Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology (VT-x) Yes
Intel Boot Guard Yes
Intel vPro Platform Eligibility Yes
Intel Turbo Boost Technology 2.0 frequency 4.6 GHz
Intel Transactional Synchronization Extensions Yes
Weight & dimensions
Processor package size 37.5 x 37.5 mm
Other features
Maximum internal memory 128 GB
CPU configuration (max) 1
Graphics output eDP/DP/HDMI/DVI
