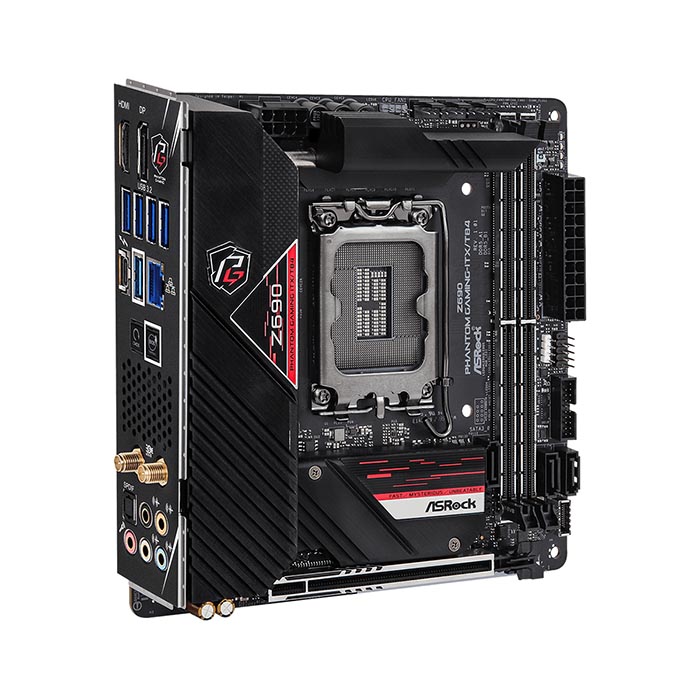

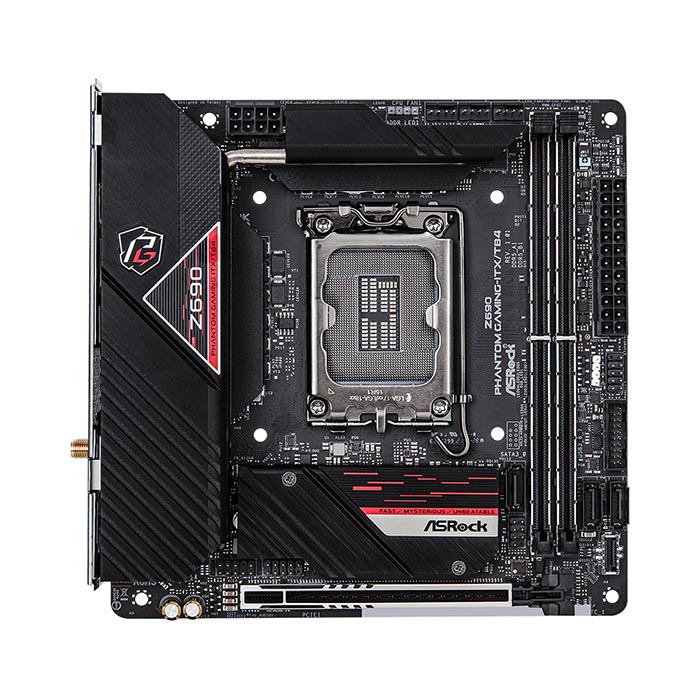

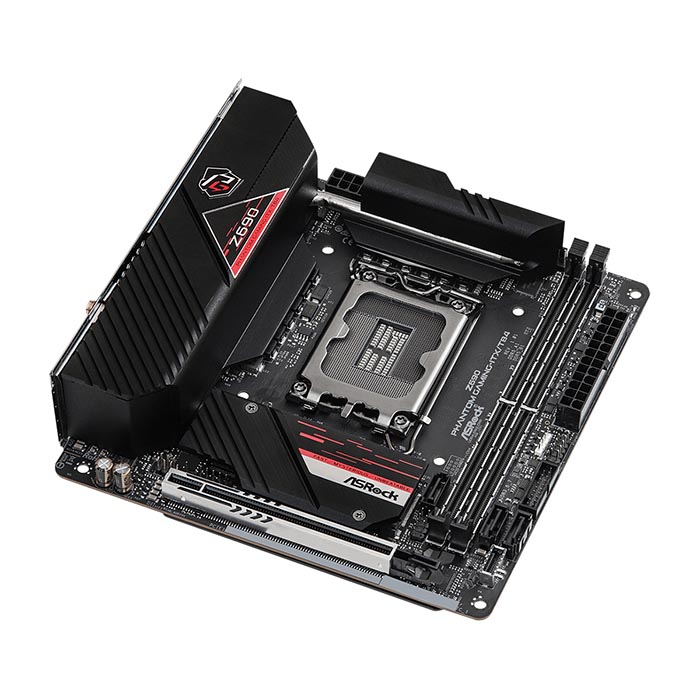

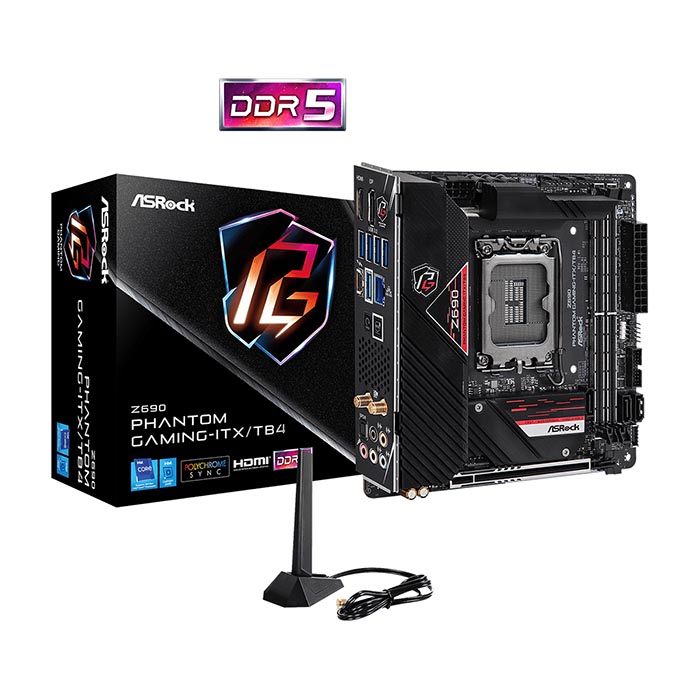

ASRock Z690 Phantom Gaming-ITX/TB4 LGA 1700 Intel Z690 Mini ITX DDR5 Motherboard (Z690 PHANTOM GAMING-ITX/TB4)
- LGA 1700
- Intel Z690
- Mini ITX
- DDR5
SKU: B005-1112
Condition: New Sealed
Model Number: Z690 PHANTOM GAMING-ITX/TB4 EAN/UPC: 0
DELIVERY
Free shipping on all orders. 1 to 4 business days delivery with 1 business day dispatch, Monday to Friday…Read More.
RETURNS
Free returns on all orders. 30 day return policy. Free returns on all faulty items within the manufacturer warranty period…Read More.
Availability:
Out of stock
US$ 433.99 inc. VAT
Out of stock
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| RAID levels | 0,1,5,10 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core i3, Intel Core i5, Intel Core i7 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 6400 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0,1,5,10 |
| RAID support | Yes |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 3 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |

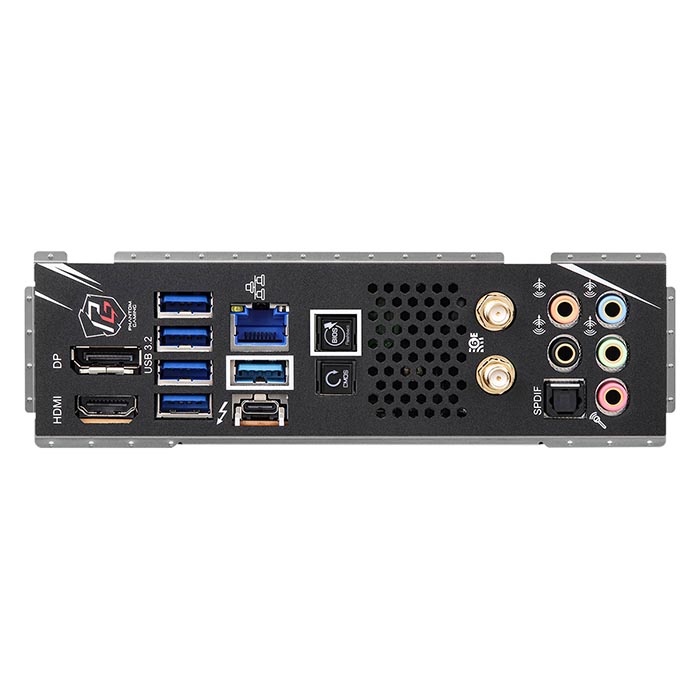

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| Thunderbolt ports quantity | 1 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6E (802.11ax) |
| Wake-on-LAN ready | Yes |
| LAN controller | Killer E3100G |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | EFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Software | |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
| Cables included | SATA |
